NEW: DSP Oscilloscope/Signal Plot plugin

Tiger M · Feb 13, 2005, 06:30 AM

Quote:

Originally Posted by eyagos

Have you tried to see what happens with an 8000Hz sine wave ??

I see what you mean...

Is there another way to acces the register at a lower level, avoiding get_dsp_register?

Lex Nahumury · Feb 13, 2005, 12:49 PM

Quote:

Is there another way to acces the register at a lower level, avoiding get_dsp_register?

I already told you how.
However, I don't think it will be much faster due to restricted priority when running in user mode.

/LeMury

Tiger M · Feb 13, 2005, 01:21 PM

Actually it's fine this way, it represents the signal accurately, so unless it's used on a very slow cpu, there won't be any problems.

I'll be just adding features from now on...

ROBSCIX · Feb 17, 2005, 09:46 PM

Hey Tiger are you planning up making it a part of the EFX? like the style ,look of the effects. Are you planning on doing a Pack, like UFX?...BTW I seen the dynamics processor in 3538, who wrote that? I like the look and feel, works nice as well. Just curious.

Tiger M · Feb 18, 2005, 06:50 AM

Not a pack, the effects are included directly with the driver as you can see in 3538.
The Dynamics Processor is by eyagos of course

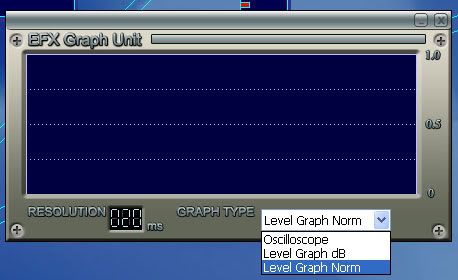

Here's how the Oscilloscope now looks like:
http://img.photobucket.com/albums/v4..._GraphUnit.jpg

Chester01 · Feb 18, 2005, 01:21 PM

that look kicks so much ass, i love that skin

eyagos · Feb 18, 2005, 05:24 PM

Look at the presset box

...Well, I was thinking to ask you for a Level Graph.

About dynamics processor, look here.

Tiger M · Feb 19, 2005, 06:47 AM

Yep, now it's also a level graph in standart values (0 to 1) or in dB, I've still not released it though...

ROBSCIX · Feb 19, 2005, 02:55 PM

I love level meters...A question has anybody ever considered a FFT...something Similar to whitecap for winamp. I have to learn C+ so I can get in on the action..off to the libary for some books, I can prgram but I forget my syntaX...

Tril · Mar 7, 2005, 02:50 AM

Tiger M, I would like some of your help for a plugin sharing some of the capabilities of your oscilloscope plugin. The code of your plugin is protected by the copyright issue with the NDA. But it is probably only some of it. Is the part about how to output values as a graphic protected too? If it is not or if you can guide me in the right direction without giving me code, I woud like some advices on how it's done.

Read this thread to know exactly what I want to do :

http://www.hardwareheaven.com/effects-dsp/69790-i-made-noise-canceller-filter-get-here.html

Tril

Tiger M · Mar 7, 2005, 12:20 PM

The plugin will be open source when I send it to Eugene.

Take a look at the 'peak' source code. There you'll find the principle of extracting data from the dsp. You basically call get_dsp_register periodically for any dsp register you like and send the data anywhere you like - most often a ui control.

That's it.

Lex Nahumury · Mar 7, 2005, 01:31 PM

No need to wait for next 3538 release,
the plot class can be found here;
http://www.codeproject.com/miscctrl/oscope.asp

/LeMury

Tiger M · Mar 7, 2005, 04:39 PM

Would you start a new topic please, this one is for comments and reporting bugs on the oscilloscope.

Russ · Feb 1, 2006, 04:07 AM

Hi Tiger M.

Glad to see your Oscilloscope plugin included with 3538j.
I thought I should mention that it does not work when connected directly to FxBus (with my 10k1 card anyway), but if you buffer the input (i.e. with a volume plugin or whatever), it works good. Anyway, I just thought I would mention it, in case anyone was wondering why they were not seeing the signal when connected directly to FxBus.

BTW: Are you going to release the new version (i.e. the skinned version in the pic) at some point?

radiocolonel.it · Feb 1, 2006, 11:44 AM

Quote:

Originally Posted by Russ

Hi Tiger M.

Glad to see your Oscilloscope plugin included with 3538j.
I thought I should mention that it does not work when connected directly to FxBus (with my 10k1 card anyway), but if you buffer the input (i.e. with a volume plugin or whatever), it works good. Anyway, I just thought I would mention it, in case anyone was wondering why they were not seeing the signal when connected directly to FxBus.

BTW: Are you going to release the new version (i.e. the skinned version in the pic) at some point?

I can't see it in 3538j, i installed the fxpack coming with the driver installation file.
I can't see it where it is, in the fx plugin list...

Russ · Feb 1, 2006, 08:22 PM

Quote:

Originally Posted by radiocolonel.it

I can't see it in 3538j, i installed the fxpack coming with the driver installation file.
I can't see it where it is, in the fx plugin list...

It is in the EF-X section (EFX Oscilloscope).

thomasabarnes · Feb 1, 2006, 08:25 PM

It's under EF-X section with ReverbStation and TubeDrive.

EDIT:

LOL, too late. Russ beat me too it.

EDIT Done

Maddogg6 · Feb 1, 2006, 09:22 PM

Small suggestion would be a 'GAIN' or a 'Y - SCALE' adjustment.
Maybe some calibrated measuring method.

Not a complaint.... but as is, it's more of a visualization than an actual o-scope.

It IS cool to know such things are possible.

Oh -and GREAT JOB!

radiocolonel.it · Feb 2, 2006, 10:23 AM

Quote:

Originally Posted by Russ

It is in the EF-X section (EFX Oscilloscope).

Thanks, Russ!

What an idiot i am... i had in front of my eyes...

guyinco6nito · Apr 19, 2007, 07:46 PM

Hello,

I wasn't able to register this Plugin using the 3538m drivers.

Does anyone else have this problem? (or know of any other kX oscilliscopes?)

Thanks!
-guyinco6nito

Russ · Apr 19, 2007, 10:37 PM

The plugin is bundled with kX in 3538m, so there is no need to download and/or register the plugin.

georgejoy · Jun 12, 2007, 01:16 PM

Hi People...

its like when i double click this downloaded file i get an error saying that "Error : Invalid Plugin Libary" why is that so?

Can anyone help me with it

Russ · Jun 12, 2007, 02:46 PM

Quote:

Originally Posted by georgejoy

Hi People...

its like when i double click this downloaded file i get an error saying that "Error : Invalid Plugin Libary" why is that so?

Can anyone help me with it

It is probably because you are trying to install an older version of the plugin.

The plugin is bundled with recent versions of kX, so there is no need to download/register anything (if you are using a recent version of kX).

georgejoy · Jun 15, 2007, 04:55 AM

Thanks Russ

I have understood and u have replied for my query. it was same and relating to MxZila which i had posted on the same day. i thank u for the patience shown to answer my queries.

Chiltn · Aug 16, 2007, 10:36 AM

Is it just me, or is anyone else having problems registering the plugin library? It says that it's invalid...

:|

Maddogg6 · Aug 16, 2007, 03:49 PM

erm... the posts right above yours pertained to this...

Quote:

Originally Posted by Russ

It is probably because you are trying to install an older version of the plugin.

The plugin is bundled with recent versions of kX, so there is no need to download/register anything (if you are using a recent version of kX).

Its in the 'EFX' sub-menu in the DSP plug-in list menu.

Chiltn · Aug 17, 2007, 07:12 AM

Whoops! My bad!

Cheers!

WxMan1 · Sep 29, 2009, 06:14 AM

For some reason when I use that in v3541 I'm don't have access to the Stop button, i.e., it is not visible in the window.

Only a resolution slider is apparent at the bottom.
